概述

Summary

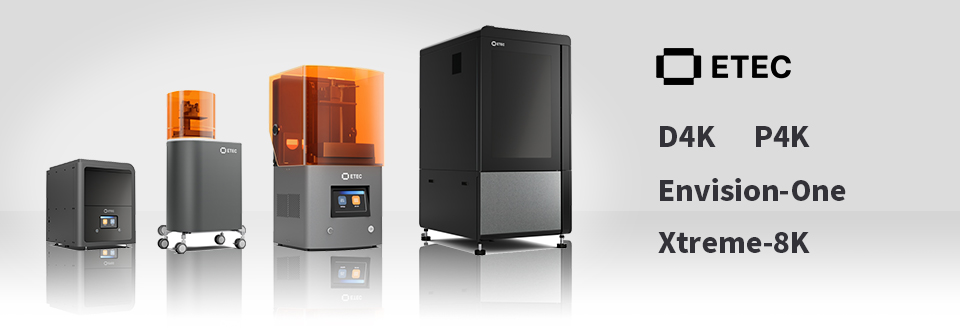

ETEC offers a variety of 3D printing systems with the ability to mass produce polymer parts with the speed and quality needed for demanding end-use applications

優勢

Advantage

ETEC offers a variety of 3D printing systems with the ability to mass produce polymer parts with the speed and quality needed for demanding end-use applications. ETEC printers deliver parts with exceptional accuracy, superior part properties, fine feature detail, and smooth surface finish at a scale and cost that is competitive with traditional manufacturing techniques like injection molding.

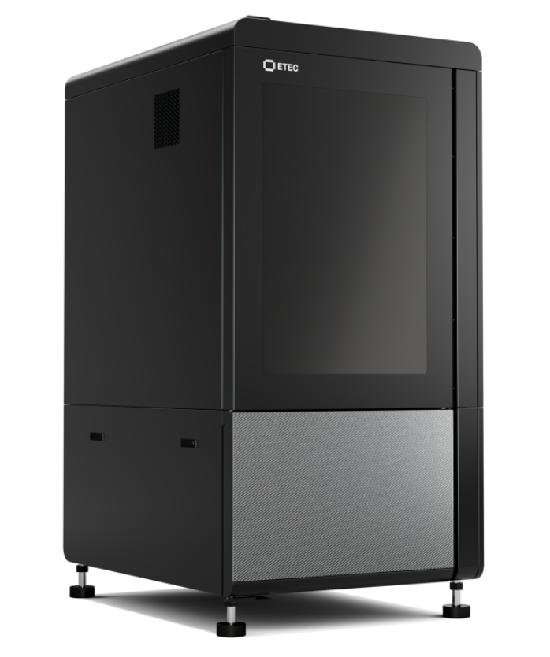

Xtreme 8K

The Xtreme 8K makes volume production of 3D-printed parts a reality, with the ability to print thousands of parts per day. With wide material compatibility, including hard plastics, high-temperature plastics, elastomers and rubbers, the Xtreme 8K enables the production of the broadest possible range of parts.

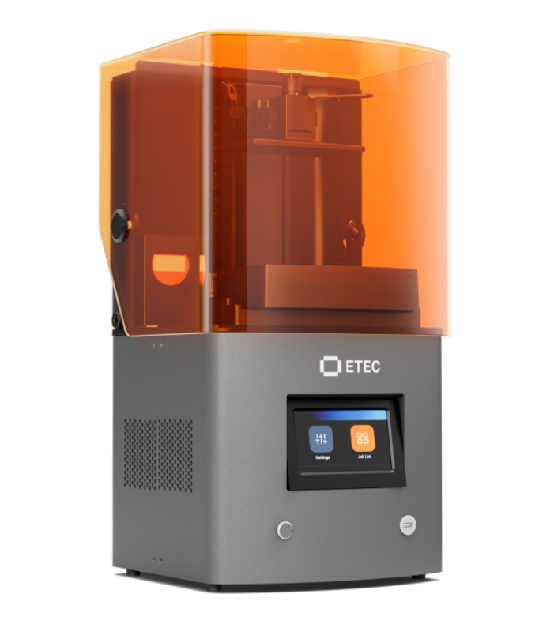

Envision One

The Envision One features patented CDLM (continuous digital light manufacturing) technology, which enables the ability for continuous printing. With little to no delay between layers, the Envision One delivers exceptional speed, print resolution, surface finish, and part properties.

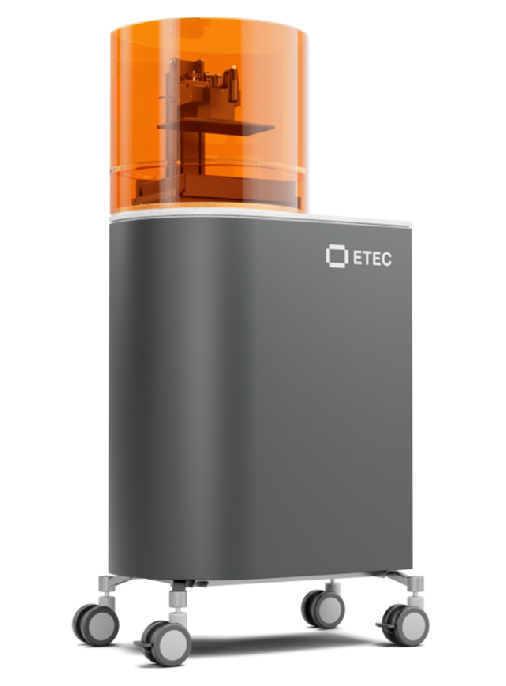

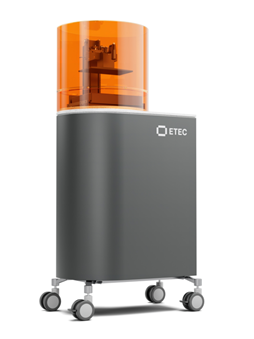

P4K

The P4K is the opposite of other, one-size-fits-all 3D printing solutions. With a range of models available, users can choose their optical configuration based on part size, feature-size requirements and throughput, and tailor a solution that best suits their needs. With resolutions of between 23µm-90µm on the X and Y axes, the P4K can easily produce detailed parts in a range of sizes.

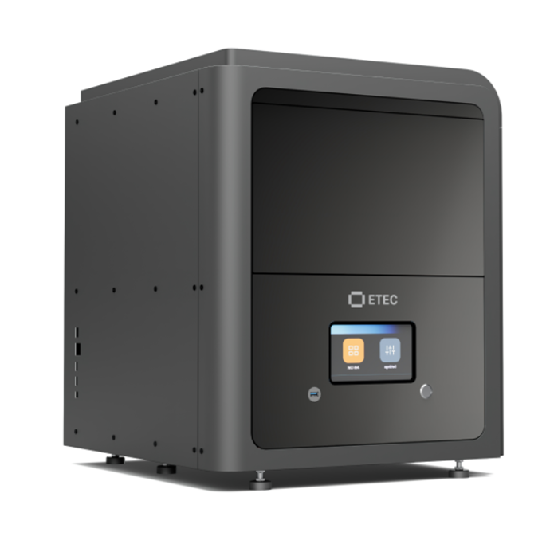

D4K

Introducing the D4K, the highest resolution professional-grade desktop 3D printer. In addition to having the fastest speed for a standard DLP printer, the D4K from ETEC delivers extremely accurate parts with the finest detail available. The D4K is compatible with most ETEC materials, including options suitable for end-use applications, dental, and jewelry.





  D4K P4K Envision One Xtreme 8K
  Desktop production of small, high resolution parts 24/7 production of small, ultra-high resolution end-use parts Rapid production of strong, fully isotropic end-use parts High-volume production of large end-use parts
PRINTER TECHNOLOGY Digital Light Processing (DLP) Digital Light Processing (DLP) Continuous Digital Light Manufacturing (CDLM) Top-Down Digital Light Processing Array
BUILD ENVELOPE 143 x 83 x 110 mm From 90 x 56 x 180 to 233 x 141.5 x 180mm 180 x 101 x 175 mm and up 450 x 371 x 399 mm
MODELS Standard Flex, Pro LT, HT, LT XL, HT XL Standard
XY RESOLUTION 25µm with patented pixel tuning 23-59µm with patented pixel tuning 60µm with patented pixel tuning 100µm with patented pixel tuning
Z RESOLUTION 25-150µm 25-150µm 50-150µm 100-175µm
